$6,699
You have added
Avail Advanced Pro 1
to your cart.
Best For: Endurance
Avail Advanced Pro 0
$7,899

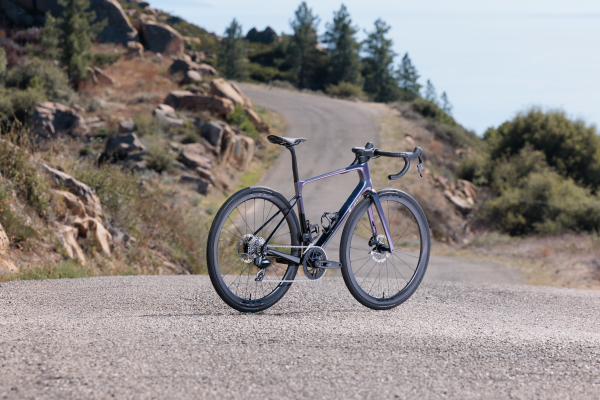

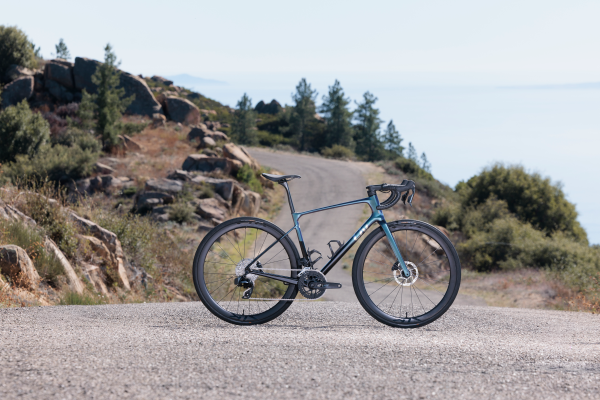

The Avail Advanced Pro is the ultimate in lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced SL-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.

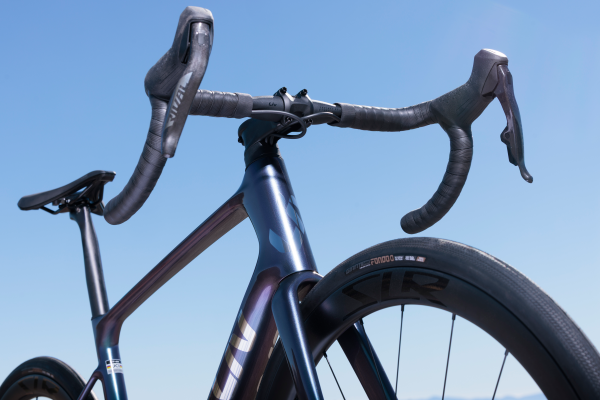

The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those all-day rides. Wide, hookless carbon rims are designed for high-volume tubeless tires (up to 38mm) and a 36mm rim depth, providing predictable handling and stability from asphalt to pavé.
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.
Professional-grade raw carbon is woven in the Giant Group composite factory using the most advanced engineering and construction methods. Continuous Fiber Technology adds strength and minimizes weight.
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

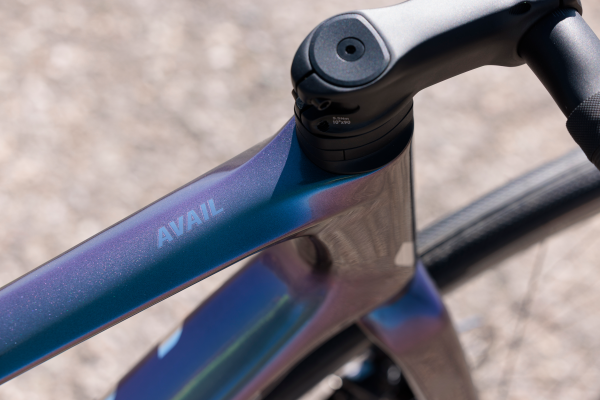

The most advanced steerer tube technology in today’s Liv and Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
156 cm5’1” 162 cm5’4” 169 cm5’7” 174 cm5’9” 182 cm6’0”
| XXS | XS | S | M | L | |
|---|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 38515.2 | 40515.9 | 43517.1 | 46518.3 | 49519.5 |
| B Seat Tube Angle (degrees) | 75.0° | 74.5° | 74.5° | 74.0° | 74.0° |
| C Top Tube Length (mm) (inch) | 50019.7 | 52020.5 | 52520.7 | 53521.1 | 55021.7 |
| D Head Tube Length (mm) (inch) | 1104.3 | 1254.9 | 1455.7 | 1656.5 | 1857.3 |
| E Head Tube Angle (degrees) | 69.8° | 71.0° | 71.0° | 71.0° | 72.0° |
| F Fork Rake (mm) (inch) | 502 | 502 | 502 | 502 | 502 |
| G Trail (mm) (inch) | 76.23 | 68.32.7 | 68.32.7 | 68.32.7 | 61.82.4 |
| H Wheelbase (mm) (inch) | 98938.9 | 99539.2 | 100239.4 | 100739.6 | 101339.9 |
| I Chain Stay Length (mm) (inch) | 42016.5 | 42016.5 | 42016.5 | 42016.5 | 42016.5 |
| J Bottom Bracket Drop (mm) (inch) | 753 | 753 | 753 | 753 | 753 |
| K Stack (mm) (inch) | 51020.1 | 52820.8 | 54721.5 | 56622.3 | 58923.2 |
| L Reach (mm) (inch) | 36314.3 | 37314.7 | 37314.7 | 37314.7 | 38115 |
| M Stand Over Height (mm) (inch) | 68326.9 | 71228 | 73729 | 76230 | 78931.1 |
| N Handlebar Width (mm) (inch) | 38015 | 38015 | 40015.7 | 40015.7 | 42016.5 |
| O Stem Length (mm) (inch) | 702.8 | 702.8 | 803.1 | 903.5 | 903.5 |
| P Crank Length (mm) (inch) | 1606.3 | 1656.5 | 1656.5 | 1706.7 | 172.56.8 |
All prices and specifications are subject to change without notice.
